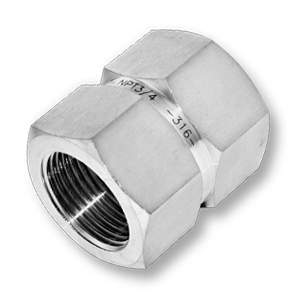

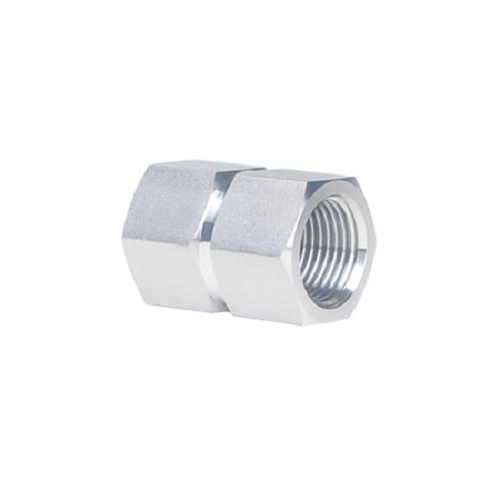

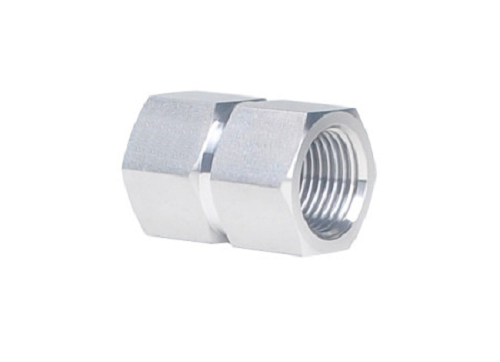

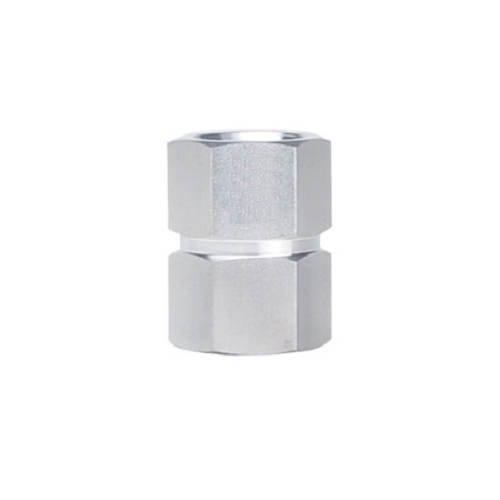

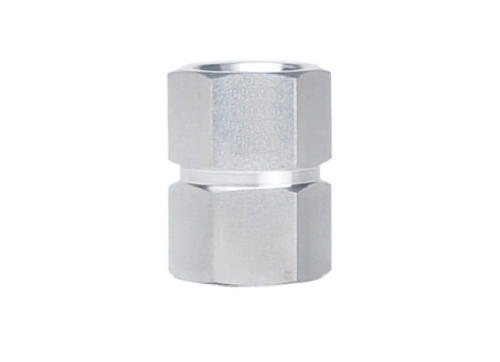

| -LW7R Hex Reducing Coupling (NPT-F x NPT-F) |
| Ordering Number |
T | T1 | L | D | W | |||
| NPT-F | NPT-F | in | mm | in | mm | in | mm | |
| -LW7R-4-2 | 1/4 | 1/8 | 1.22 | 31.00 | 0.34 | 8.60 | 0.75 | 19.00 |
| -LW7R-6-4 | 3/8 | 1/4 | 1.38 | 35.10 | 0.45 | 11.40 | 0.87 | 22.20 |
| -LW7R-8-2 | 1/2 | 1/8 | 1.56 | 39.60 | 0.34 | 8.60 | 1.06 | 27.00 |
| -LW7R-8-4 | 1/2 | 1/4 | 1.75 | 44.50 | 0.45 | 11.40 | 1.06 | 27.00 |
| -LW7R-8-6 | 1/2 | 3/8 | 1.78 | 45.20 | 0.59 | 15.00 | 1.06 | 27.00 |
| -LW7R-12-4 | 3/4 | 1/4 | 1.81 | 46.00 | 0.45 | 11.40 | 1.31 | 33.30 |
| -LW7R-12-8 | 3/4 | 1/2 | 2.06 | 52.30 | 0.73 | 18.50 | 1.31 | 33.30 |
| -LW7R-16-8 | 1 | 1/2 | 2.19 | 55.60 | 0.73 | 18.50 | 1.62 | 41.20 |
| -LW7R-16-12 | 1 | 3/4 | 2.25 | 57.20 | 0.94 | 23.90 | 1.62 | 41.20 |
