Hex Coupling

Khớp nối thẳng răng trong (Hex Coupling)

Khớp nối thẳng răng trong (Hex Coupling)

Danh mục sản phẩm
1
image carousel by WOWSlider.com v7.4
Trang chủ Sản phẩm ĐẦU NỐI ỐNG INOX Khớp nối thẳng răng trong (Hex Coupling) Hex Coupling
Hex Coupling
Lượt xem: 736

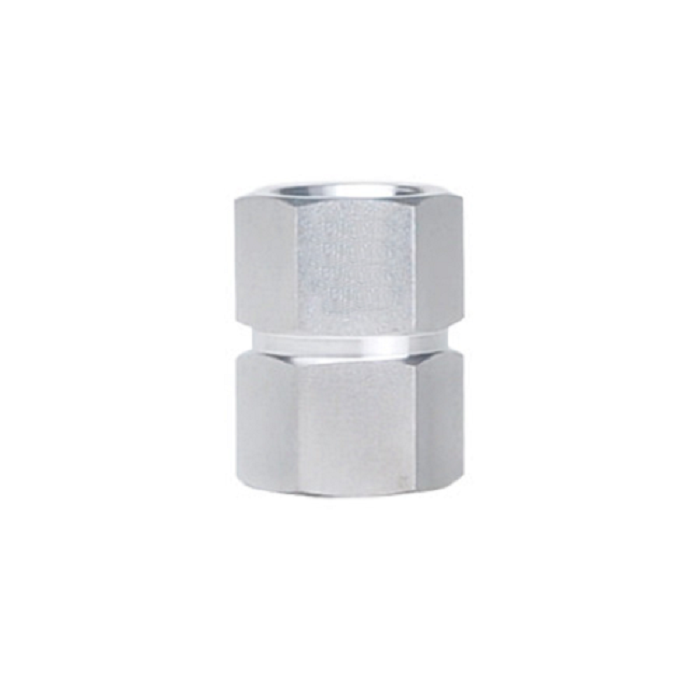

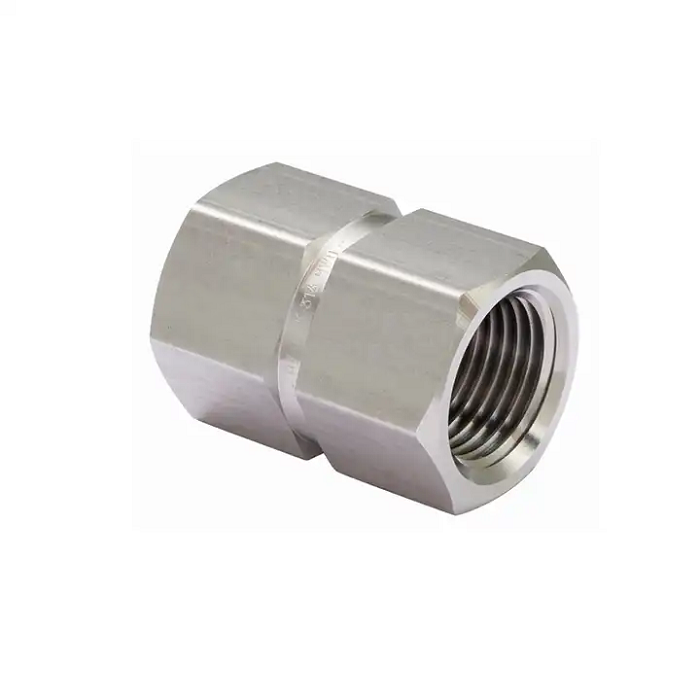

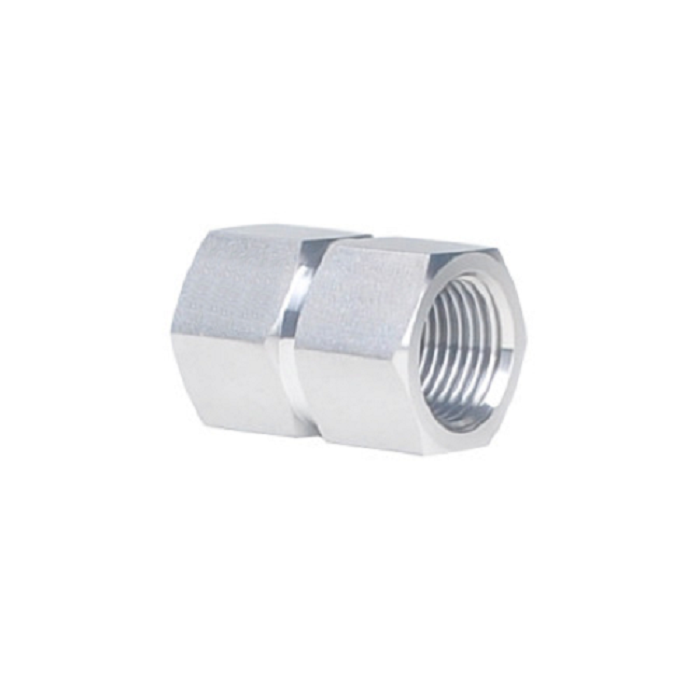

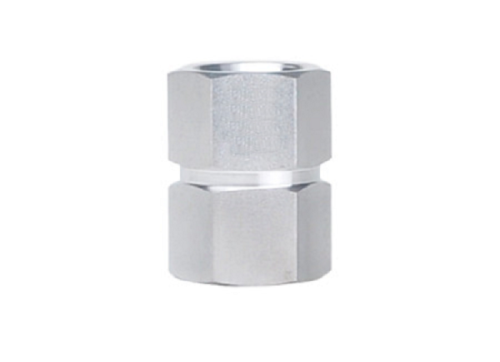

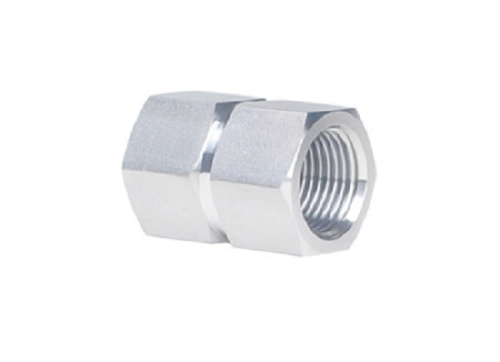

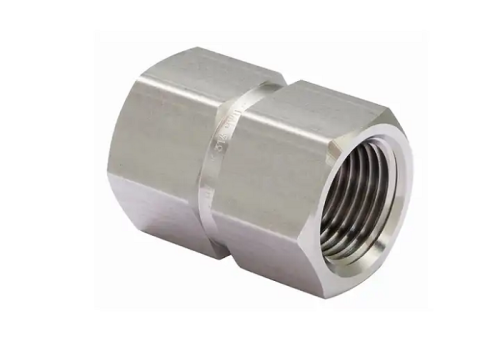

Khớp nối thẳng răng trong (Hex Coupling)

　

　		 　

　

 　
-LW7 Hex Coupling ( NPT-F x NPT-F)
Ordering
Number		 T L D W (Hex)
NPT-F  in mm in mm in mm
-LW7-2 1/8 0.81 20.60 0.34 8.60 0.56 14.20
-LW7-4 1/4 1.19 30.20 0.45 11.40 0.75 19.00
-LW7-6 3/8 1.31 33.30 0.59 15.00 0.87 22.20
-LW7-8 1/2 1.56 39.60 0.73 18.50 1.06 27.00
-LW7-12 3/4 1.62 41.10 0.94 23.90 1.31 33.30
-LW7-16 1 2.00 50.80 1.17 29.70 1.62 41.20

Số lượng
Thêm vào giỏ hàng Mua ngay
Giá bán: Liên hệ
